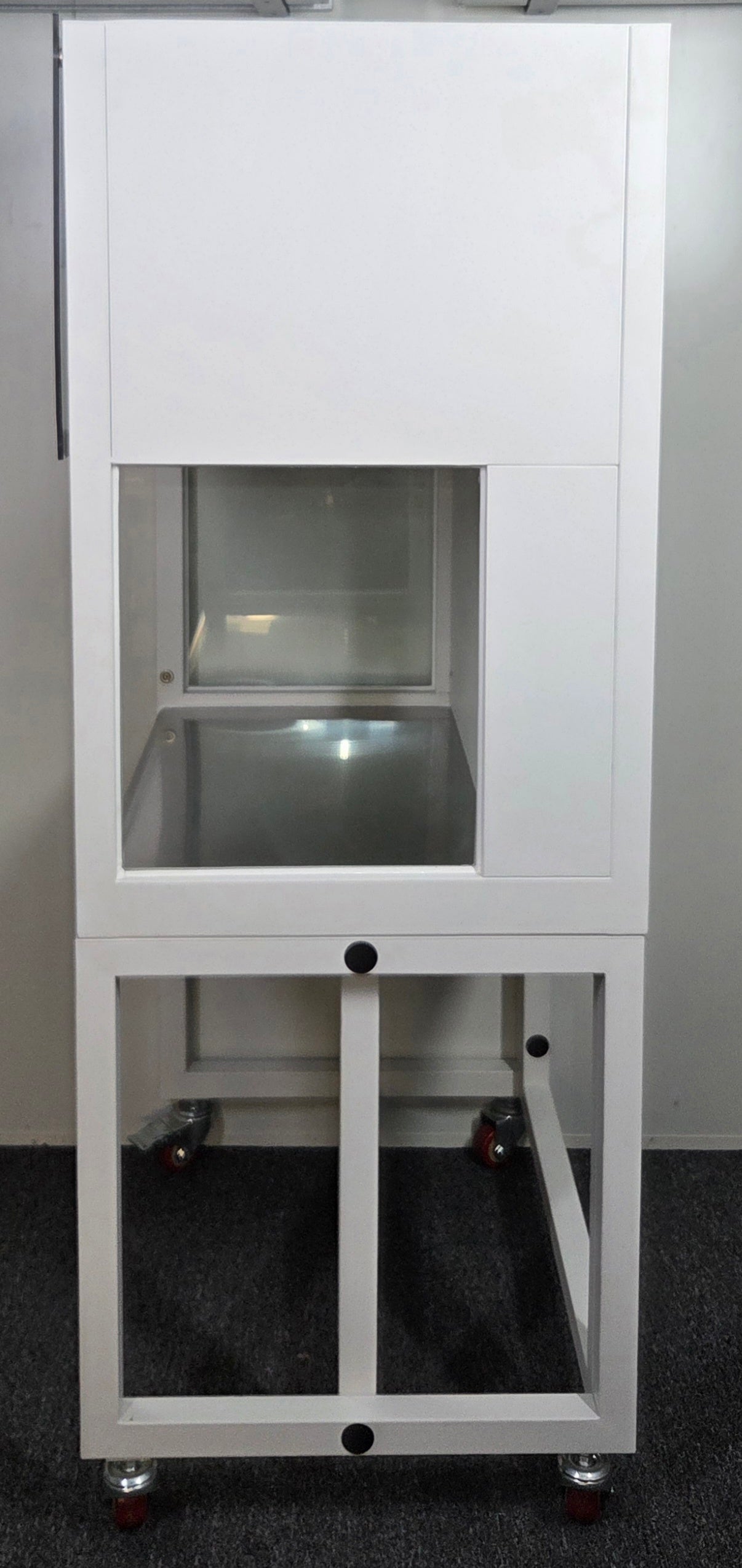

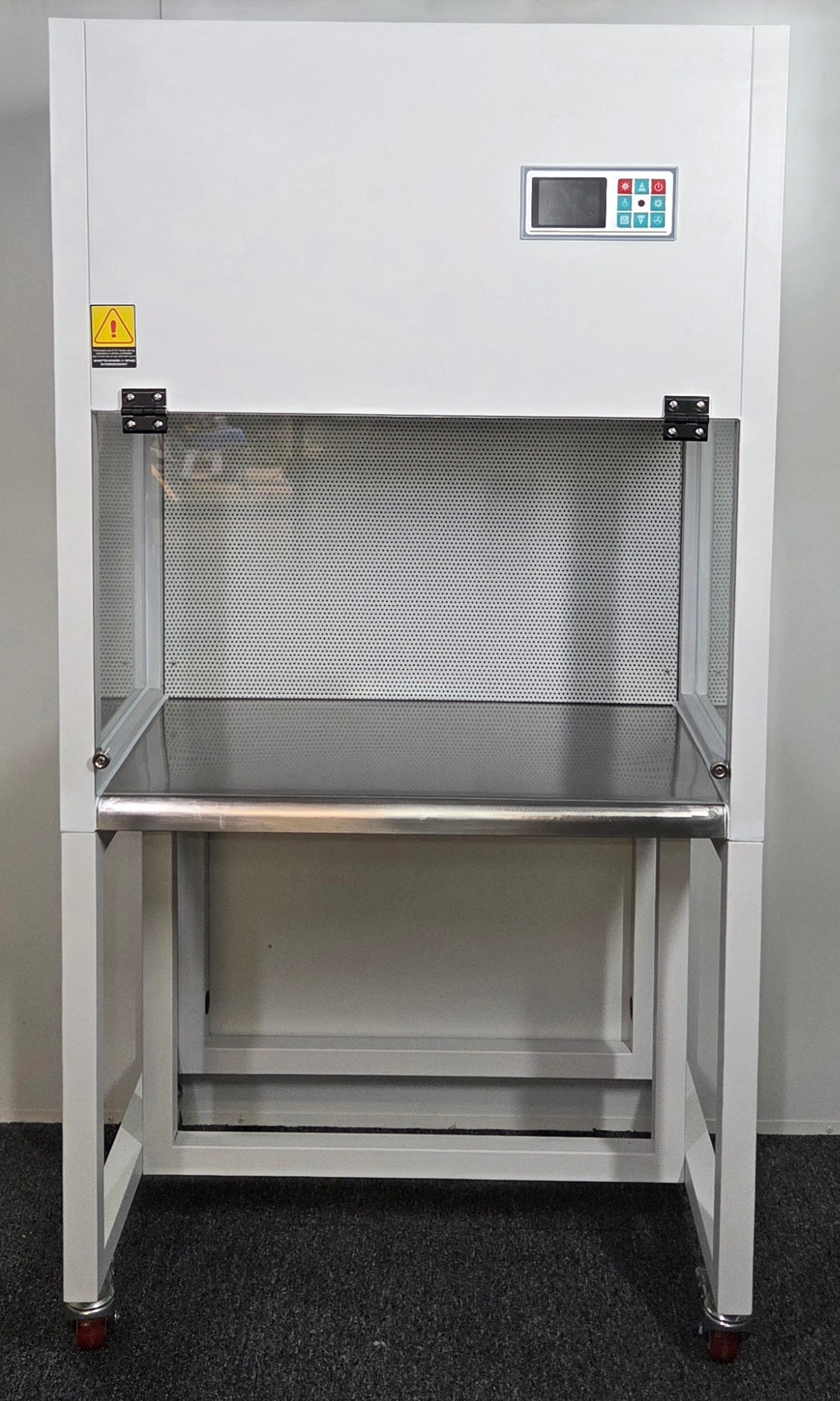

SWP Series Horizontal Laminar Flow Cabinet ISO Class 5 Clean Bench – H14 HEPA Filtration

Reliable Horizontal Clean Air for Laboratory & Sterile Work

The SWP Series horizontal laminar flow cabinet delivers ISO Class 5 clean air using H14 HEPA filtration (99.99%+ efficiency at 0.3µm). Designed for laboratories, research environments and sterile preparation areas, the SWP series provides stable horizontal laminar airflow across the working surface.

The cabinet utilises Kenton CLEANFLOW™ airflow engineering, combining a centrifugal blower, airflow plenum chamber and laminar diffuser to ensure uniform air distribution while minimising turbulence within the working area.

Air entering the cabinet first passes through a washable pre-filter before reaching the high-efficiency HEPA filter. This dual filtration system removes airborne particulates while helping extend the service life of the main HEPA filter.

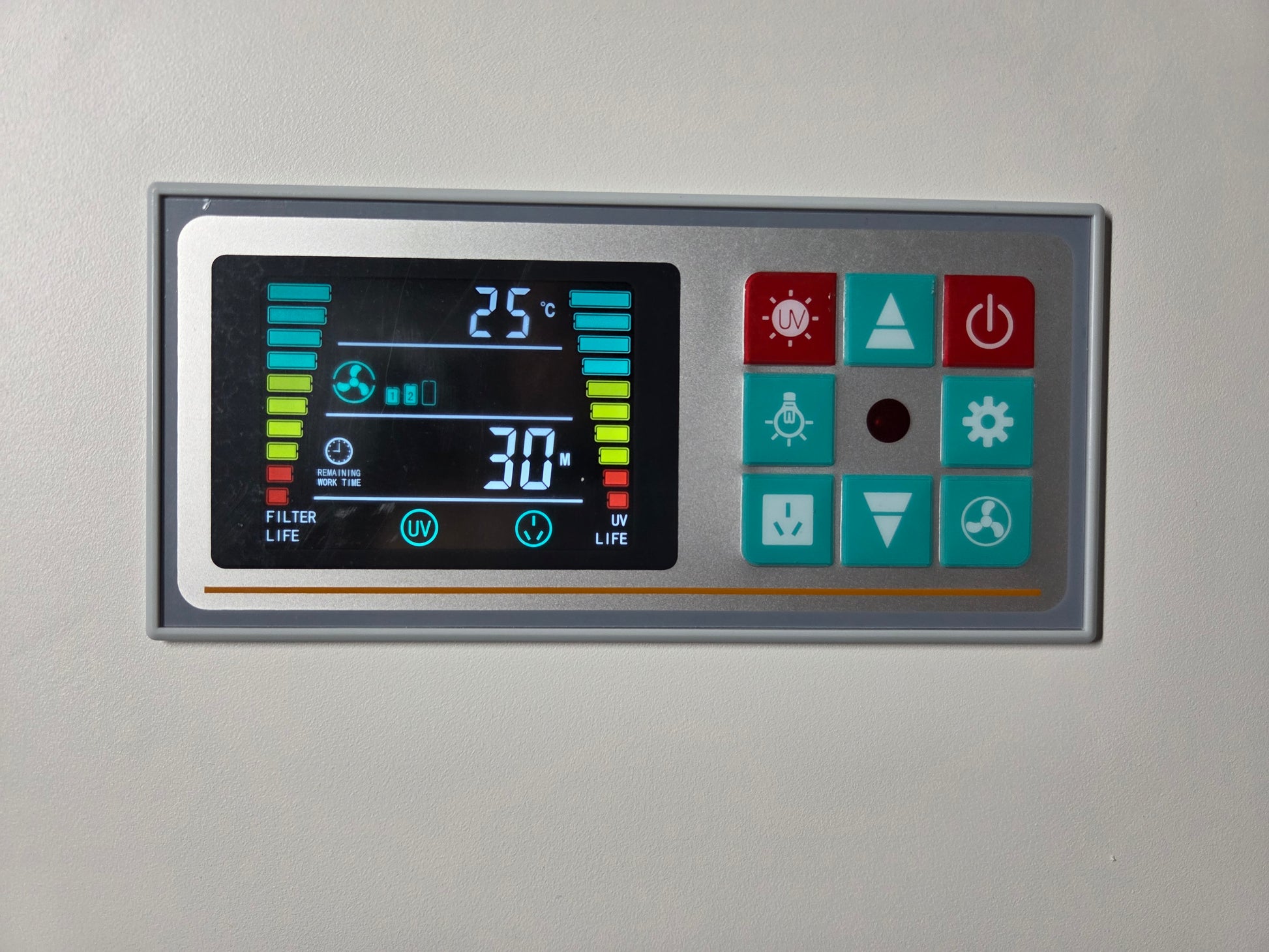

The cabinet includes a digital control system that allows users to monitor HEPA filter life, UV sterilisation lamp hours and total cabinet operating time. This helps ensure consistent performance and allows maintenance to be scheduled efficiently.

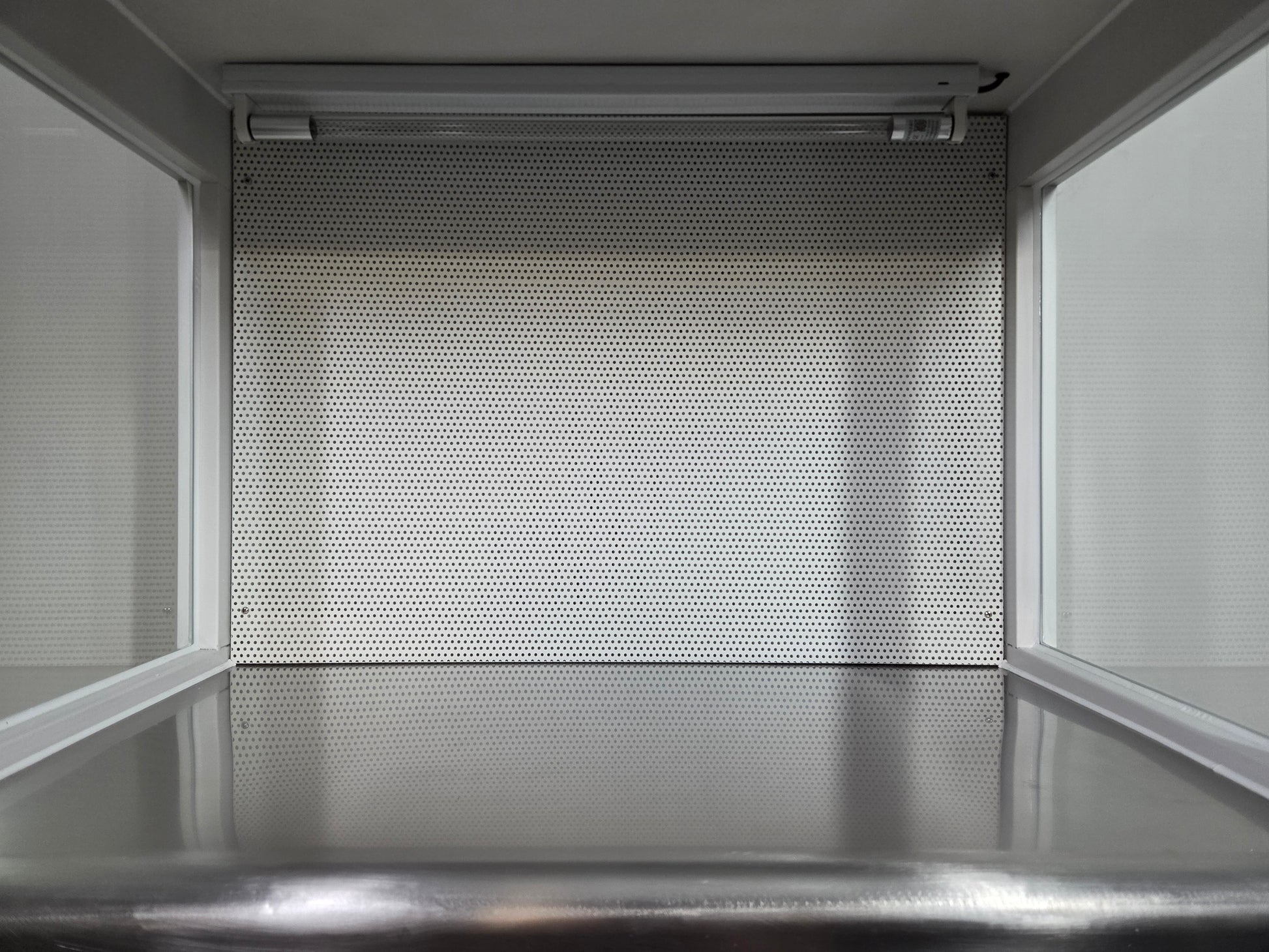

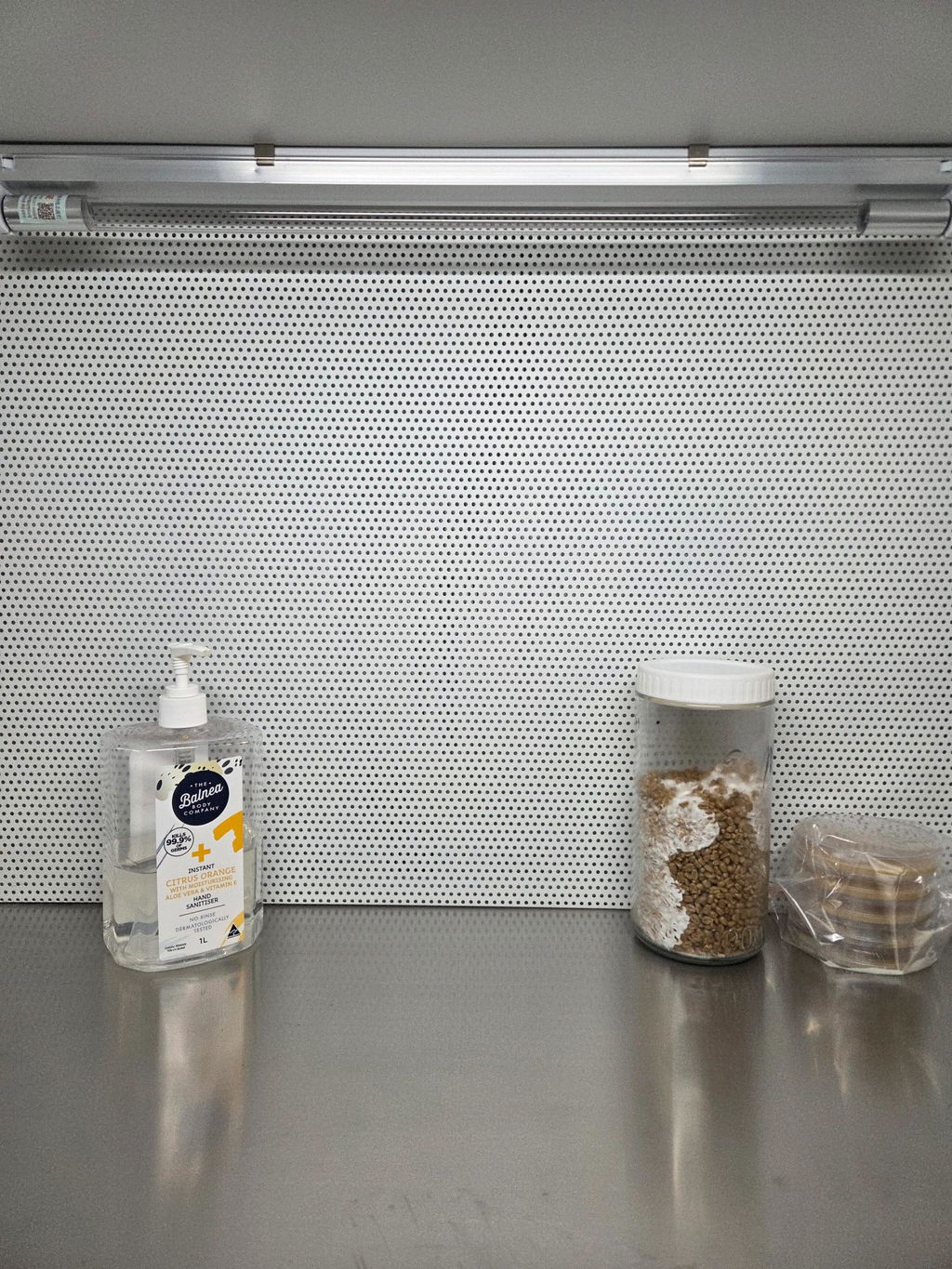

The stainless steel working surface is designed with smooth, easy-to-clean surfaces suitable for laboratory environments. Integrated lighting provides clear visibility during operation, while the UV germicidal lamp allows sterilisation of the work area when the cabinet is not in use.

This cabinet protects the work surface and product from contamination. It does not provide operator biological protection.

Key Features

• ISO Class 5 clean air environment
• H14 HEPA filtration (99.99%+ @ 0.3µm)
• Horizontal laminar airflow
• Kenton CLEANFLOW™ airflow system
• Adjustable fan speed control
• Washable pre-filter to extend HEPA service life
• Stable centrifugal blower system
• Low noise operation (~45 dB)
• Stainless steel working surface (201 SS)
• Integrated lighting system
• UV germicidal sterilisation lamp
• Digital control panel with system monitoring
• HEPA filter life indicator
• UV lamp life indicator
• Total cabinet operating hour counter

Typical Applications

• Microbiology laboratories
• Mycology and fungal culture work
• Agar plate preparation and sterile transfers
• Tissue culture preparation
• Pharmaceutical preparation environments
• Electronics assembly requiring clean air conditions
• Research and teaching laboratories

Models Available

SWP-1 – Single Workstation

• HEPA Filter: 610 × 610 × 50 mm
• Internal Working Area: 500H × 800W × 530D mm
• External Cabinet Size: 1600H × 860W × 680D mm
• Net Weight: 80 kg

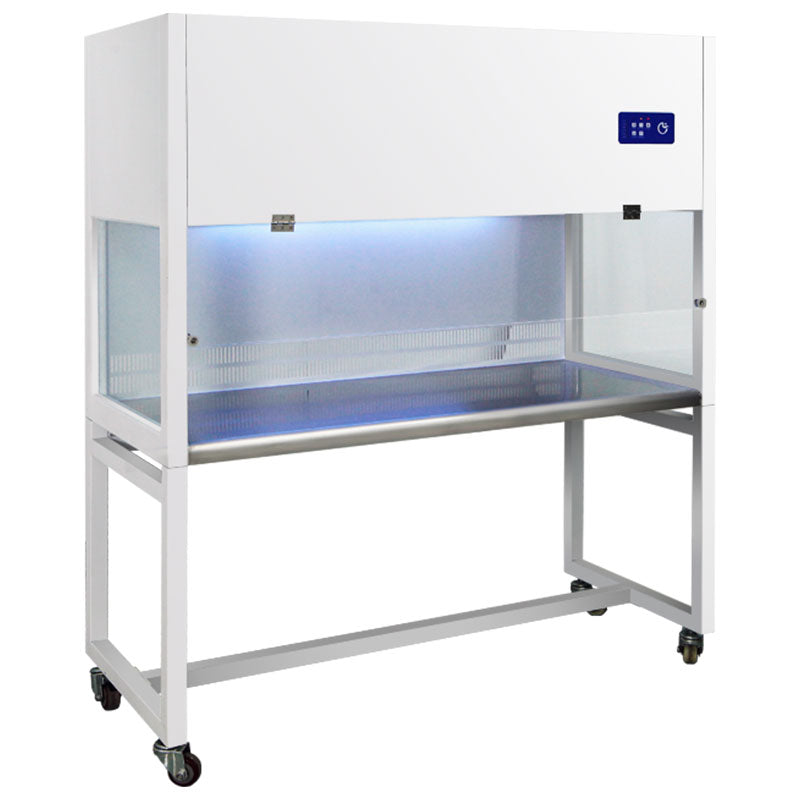

SWP-2 – Double Workstation

• HEPA Filter: 610 × 915 × 50 mm
• Internal Working Area: 500H × 1300W × 530D mm
• External Cabinet Size: 1600H × 1380W × 680D mm
• Net Weight: 120 kg

All dimensions shown as H × W × D unless otherwise stated.

Standards & Certification

• ISO 9001 quality management certification
• ISO 14001 environmental management certification
• ISO 13485 medical device quality system certification
• Certification documentation and compliance information can be provided upon request.

Warranty & Support

• 2 Year manufacturer warranty
• Technical assistance available if required
• Installation and troubleshooting support available via video conferencing

Inspection

Inspection available in Perth, Western Australia.

Delivery

Freight calculated separately based on delivery location.

Approximately 35 days delivery-40 days delivery

Please contact us for a formal freight quotation.
