JoanLab OS-20F Digital Orbital Shaker – 250 × 250 mm
JoanLab OS-20F Digital Orbital Shaker – 250 × 250 mm
Including GST
Shipping Included
Couldn't load pickup availability
Free Australia-Wide Shipping

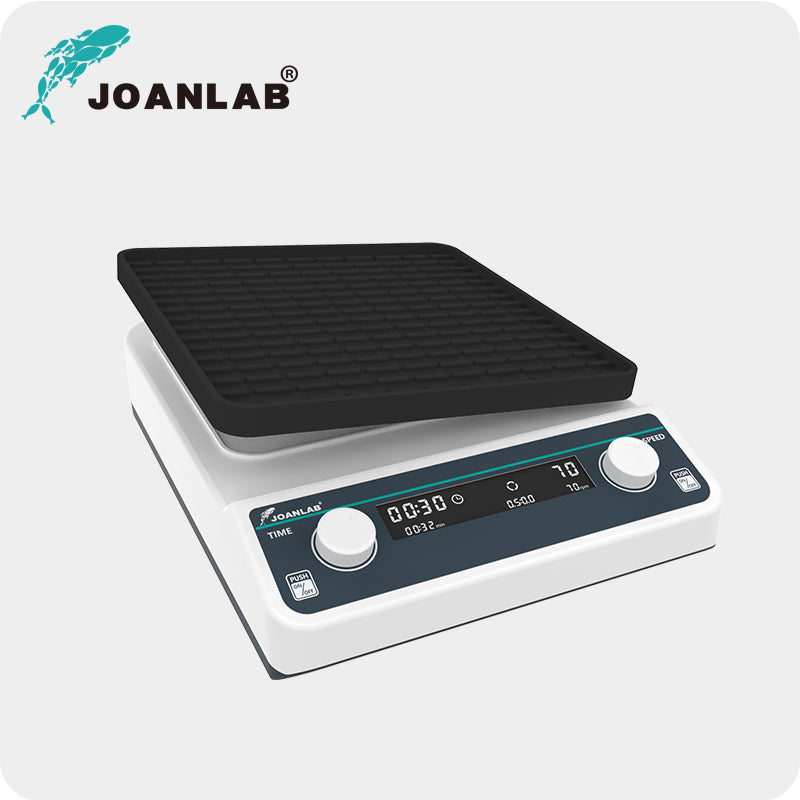

The JoanLab OS-20F is a compact digital orbital shaker designed for smooth and consistent mixing of laboratory samples on a flat 250 × 250 mm working platform.
With an adjustable speed range of 40–200 rpm and a 20 mm circular orbit, the OS-20F provides controlled agitation for laboratory dishes, plates, flasks, bottles and other compatible vessels.
The flat platform is fitted with a non-slip surface and supports loads up to 2 kg. Digital speed and timer controls allow repeatable operation, with continuous operation or timed runs from 1 minute to 23 hours 59 minutes.
A brushless motor provides quiet, stable and low-maintenance operation for routine laboratory use. JoanLab specifically distinguishes the OS-20F by its flat tray, while the OS-20Pro uses a universal clamping tray.
Key Features
- Adjustable 40–200 rpm speed range
- 20 mm circular orbital motion
- 250 × 250 mm flat working platform
- Non-slip platform surface
- Maximum load capacity of 2 kg
- Digital speed and timer controls
- Timer from 1 minute to 23 hours 59 minutes
- Continuous or timed operation
- Brushless motor
- LCD display
- Touch-button controls
- 30 W power consumption
- Australian-compatible power supply
Specifications
| Specification | Details |
|---|---|
| Brand | JoanLab |
| Model | OS-20F |
| Type | Digital Orbital Shaker |
| Motion | Circular Orbital |
| Speed Range | 40–200 rpm |
| Orbit Diameter | 20 mm |
| Platform Size | 250 × 250 mm |
| Platform Type | Flat Platform |
| Maximum Load | 2 kg |
| Timer | 1 min – 23 h 59 min |
| Operation | Continuous or Timed |
| Display | LCD |
| Motor | Brushless Motor |
| Power | 30 W |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Environment | 5–40°C, up to 80% RH |
JoanLab's own technical data confirms the 40–200 rpm speed, 250 × 250 mm platform, 2 kg load, 1 min–23 h 59 min timer and brushless motor. Its catalogue also specifies 30 W and AC 100–240 V.
Ideal Applications
- Laboratory sample mixing
- Dish and plate mixing
- Solution and reagent preparation
- Microbiology laboratories
- Mycology laboratories
- Biotechnology laboratories
- Pharmaceutical laboratories
- Research laboratories
- Universities and teaching laboratories
- Quality control laboratories
Shipping & Warranty
- Free Australia-wide shipping
- 12-month Australian warranty
- Australian technical support
- GST tax invoice included
- Securely packaged for transport
