JHP Horizontal Laminar Flow Clean Bench – ISO Class 5 / H14 HEPA Filtration

Professional Horizontal Clean Air Workstation

The JHP Series horizontal laminar flow cabinet delivers ISO Class 5 clean air using H14 HEPA filtration (99.99%+ efficiency at 0.3µm). Designed for university laboratories, research facilities and professional sterile preparation environments, the JHP series provides stable horizontal laminar airflow across the entire working surface.

The cabinet uses Kenton CLEANFLOW™ airflow engineering, combining a low-vibration centrifugal blower, airflow plenum chamber and laminar diffuser to ensure uniform air distribution while minimising turbulence within the work zone.

Air entering the cabinet first passes through a washable pre-filter before reaching the high-efficiency HEPA filter. This dual filtration system removes airborne particulates while extending the service life of the primary HEPA filter.

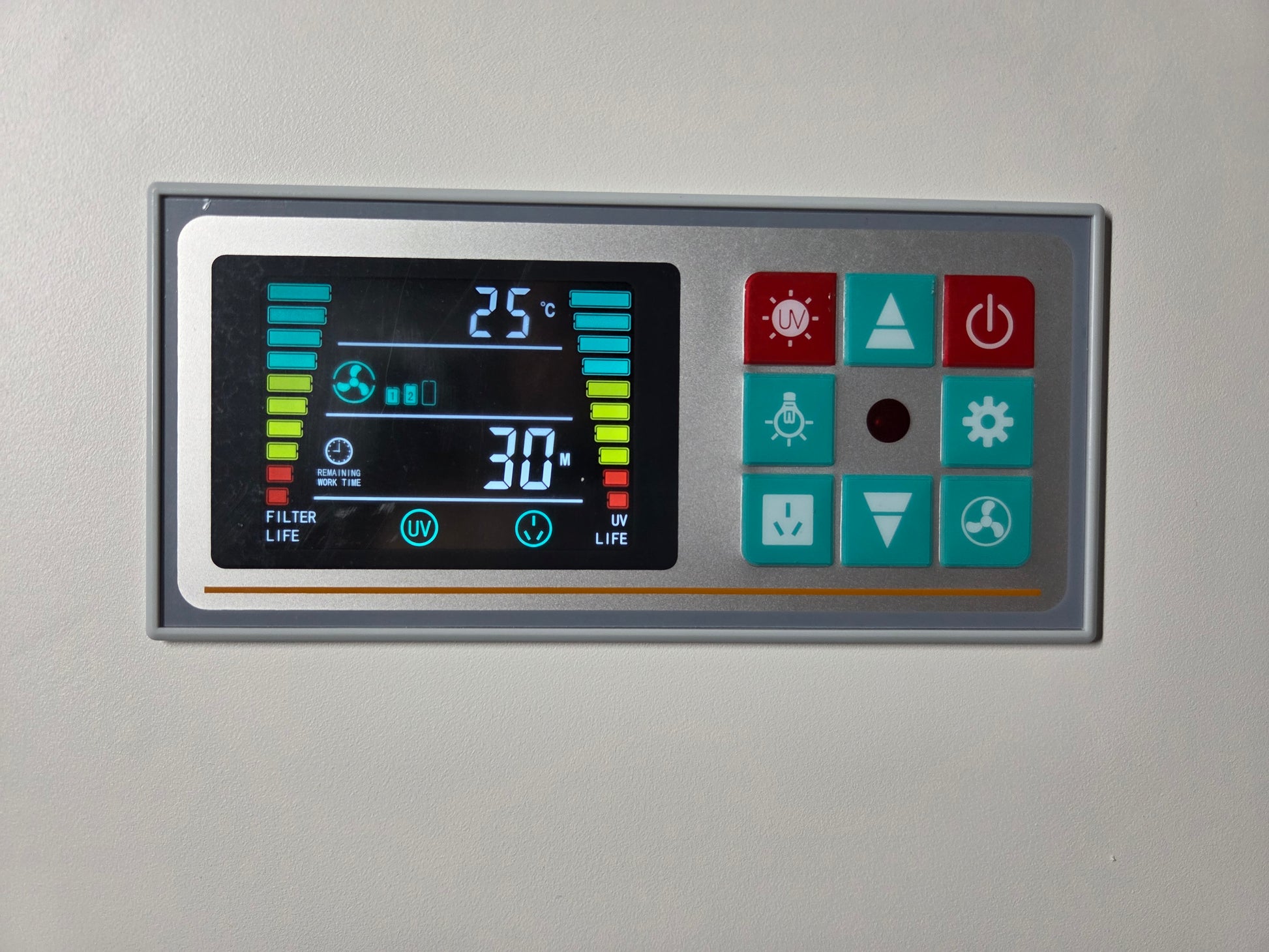

A micro-computer LCD control system allows operators to monitor cabinet performance in real time. The display provides clear information on HEPA filter life, UV sterilisation lamp hours and total cabinet operating time, helping ensure optimal performance and timely maintenance.

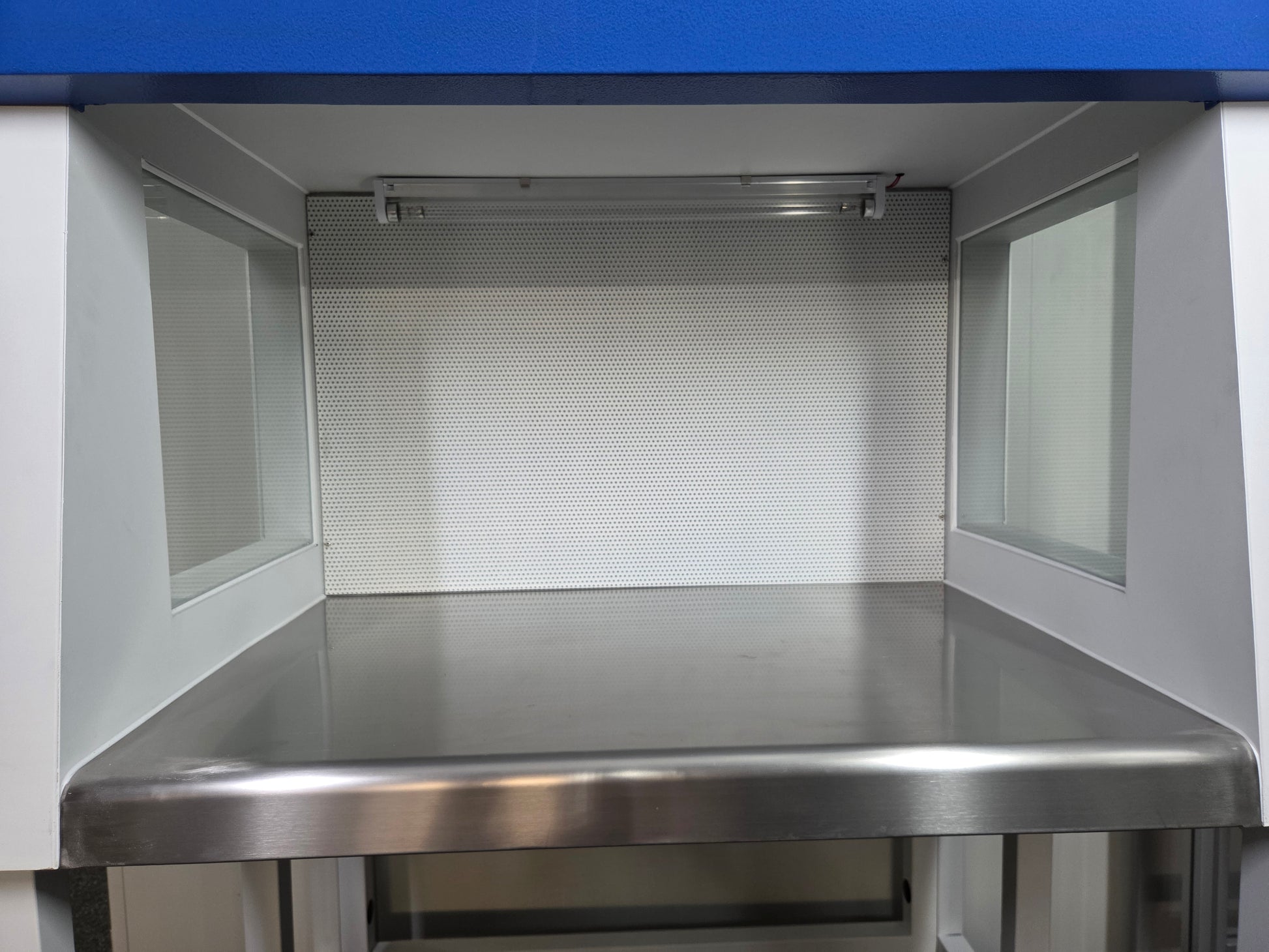

The working platform is constructed from SUS304 stainless steel and designed with smooth internal surfaces suitable for laboratory cleaning and disinfection. Integrated LED lighting provides clear illumination across the work area, while the UV germicidal lamp enables sterilisation of the cabinet interior when the unit is not in operation.

This cabinet protects the work surface and product from contamination. It does not provide operator biological protection.

Key Features

• ISO Class 5 clean air environment
• H14 HEPA filtration (99.99%+ @ 0.3µm)
• Horizontal laminar airflow
• Kenton CLEANFLOW™ airflow system
• Adjustable airflow velocity (0.3 – 0.6 m/s)
• Washable pre-filter to extend HEPA service life
• Micro-computer LCD control system
• HEPA filter life monitoring
• UV lamp life monitoring
• Total cabinet operating hour counter
• SUS304 stainless steel working surface
• Integrated LED lighting system
• UV germicidal sterilisation lamp
• Ergonomic front tilt cabinet design

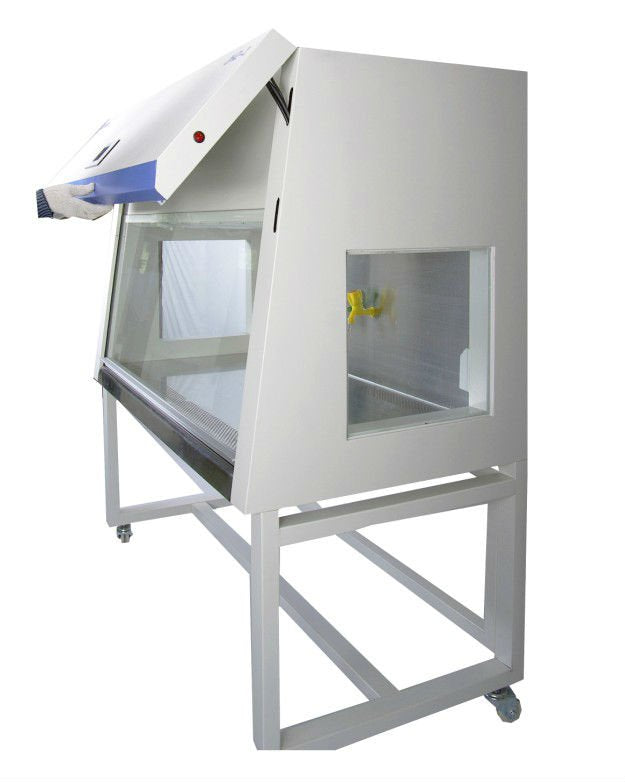

• Counterbalanced sliding glass door
• Optional gas and electrical outlets
• Low-vibration centrifugal blower system

Typical Applications

• University and research laboratories
• Microbiology laboratories
• Mycology and fungal culture work
• Agar plate preparation and sterile transfers
• Tissue culture preparation
• Pharmaceutical preparation environments
• Precision electronics assembly

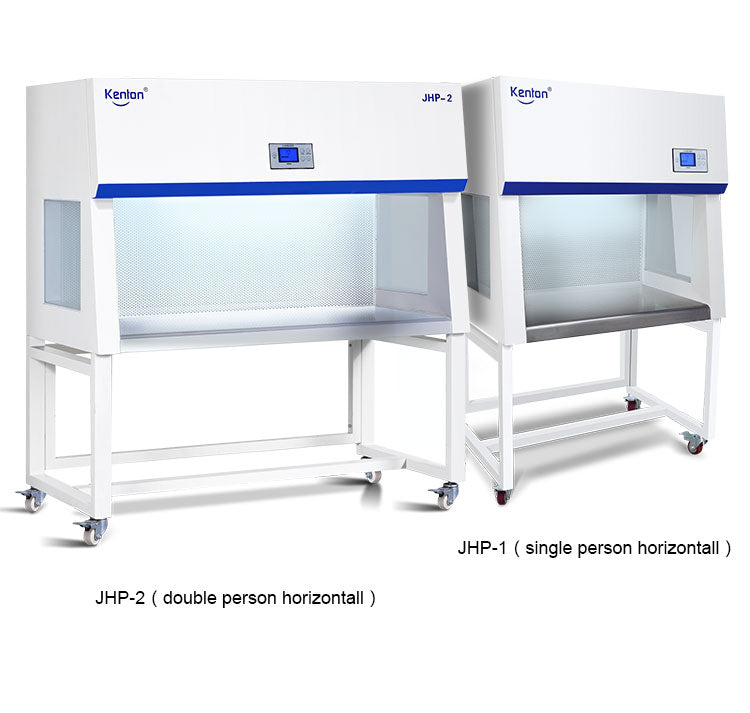

Models Available

JHP-1 – Single Workstation

• HEPA Filter: 610 × 610 × 50 mm
• Internal Working Area: 500H × 830W × 530D mm
• External Cabinet Size: 1600H × 900W × 695D mm
• Net Weight: 120 kg

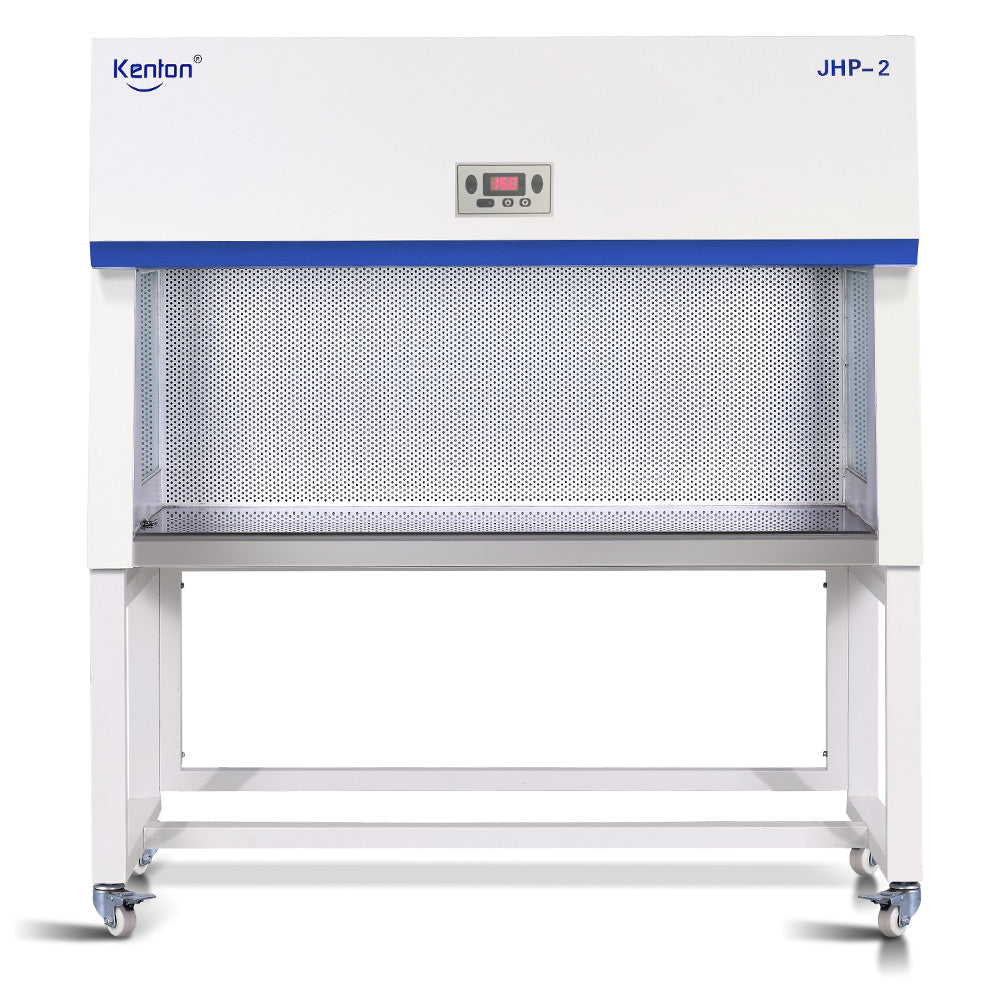

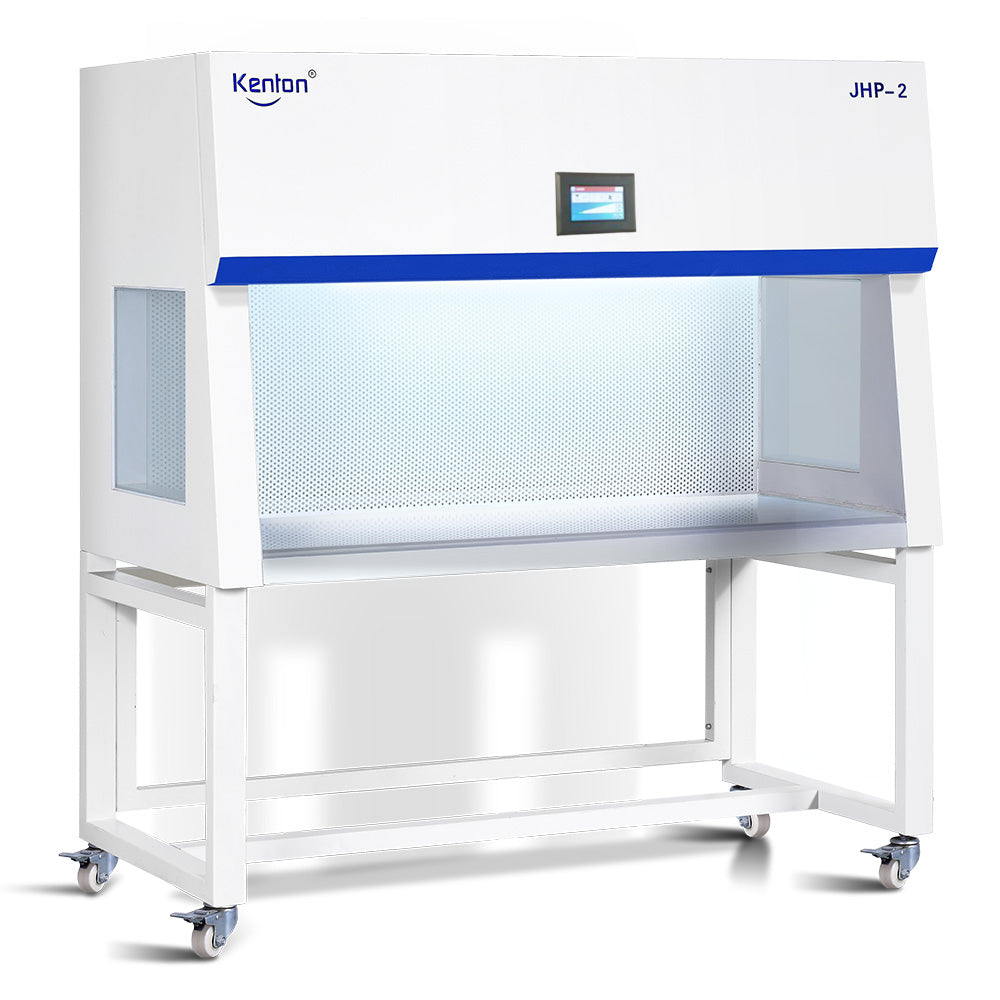

JHP-2 – Double Workstation

• HEPA Filter: 610 × 915 × 50 mm
• Internal Working Area: 500H × 1300W × 530D mm
• External Cabinet Size: 1600H × 1400W × 695D mm
• Net Weight: 210 kg

All dimensions shown as H × W × D unless otherwise stated.

Standards & Certification

• ISO 9001 quality management certification
• ISO 14001 environmental management certification
• ISO 13485 medical device quality system certification
• Certification documentation and compliance information can be provided upon request.

Warranty & Support

• 3 Year manufacturer warranty
• Technical assistance available if required
• Installation and troubleshooting support available via video conferencing

Inspection

Inspection available in Perth, Western Australia.

Delivery

Freight calculated separately based on delivery location.

Approximately 35 days delivery-40 days delivery

Please contact us for a formal freight quotation.
