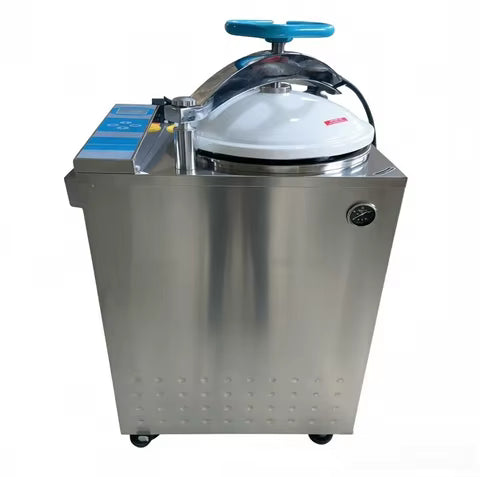

The LS-HV Class B Vertical Pulse Vacuum Steam Autoclave is a fully automatic laboratory steriliser designed for applications requiring effective air removal, reliable steam penetration and vacuum drying.

Available in 35L, 50L, 75L and 100L capacities, the LS-HV series automatically controls water filling, pulse vacuum, heating, sterilisation, steam and water discharge, and vacuum drying.

The triple pulsating vacuum system removes air from the sterilisation chamber before the sterilisation cycle, helping steam penetrate instruments, dressings, containers and compatible cavity devices. After sterilisation, a multiple pulsating vacuum drying cycle assists in removing residual moisture from the load.

An internal steam circulation system helps minimise steam discharge into the surrounding laboratory environment.

Features

• Class B pressure steam steriliser

• Fully automatic operation

• Available in 35L, 50L, 75L and 100L capacities

• Triple pulsating vacuum air removal

• Vacuum level up to approximately -0.081 MPa

• Multiple pulsating vacuum drying

• Automatic water filling

• Automatic heating and sterilisation

• Automatic steam and water discharge

• Touch-button microprocessor control

• LCD digital display

• Displays sterilisation temperature, pressure, time and vacuum status

• Four preset sterilisation programs

• User-programmable sterilisation cycle

• 0.22 μm bacteria air filter

• PT/TT test interfaces

• High-quality stainless steel construction

• Quick-opening handwheel door

• Self-inflating pressure door seal

• Steam inner circulation system

• Automatic cycle completion with audible alert

• Over-temperature protection

• Over-pressure protection

• Low-water protection

• Door safety interlock

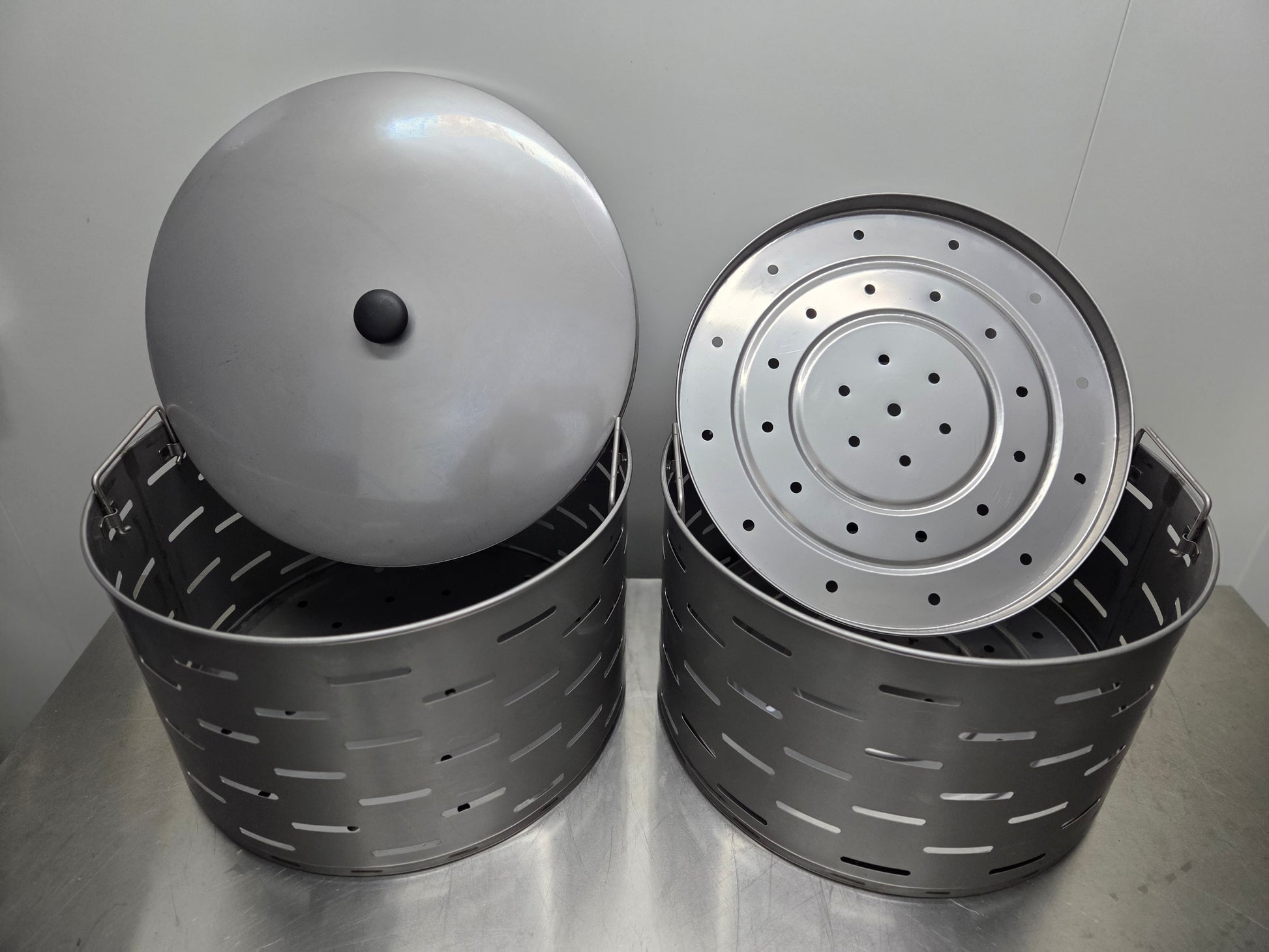

• Two stainless steel sterilising baskets included

• AC 220V, 50Hz

Available Models

Technical Specifications

Suitable For

• Laboratory instruments

• Dressings

• Containers

• Culture media

• Compatible cavity instruments and devices

• Research laboratories

• Universities and educational laboratories

• Veterinary laboratories

• Pharmaceutical laboratories

• Biotechnology laboratories

• Quality control laboratories

Safety Features

The LS-HV series incorporates several automatic safety systems, including:

• Automatic over-temperature protection

• Automatic over-pressure protection

• Automatic low-water protection

• Door safety interlock

• Automatic shutdown and audible alert at cycle completion

The sterilisation program cannot begin unless the door is correctly closed, and the door cannot be opened while the chamber remains under pressure.

What's Included

• LS-HV Vertical Pulse Vacuum Steam Autoclave

• Two stainless steel sterilising baskets

• Power cable

• User manual

Warranty & Shipping

12-Month Manufacturer's Warranty

Australian customer support is provided for all autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.

Use only distilled or demineralised water. Damage caused by tap water, bore water, rainwater or other untreated water is not covered under warranty.

Australia-Wide Shipping

Australia-wide shipping is available for this product.

Freight costs vary depending on the delivery location and site access requirements. A freight quotation will be provided for your approval before your order is processed.

Please Note

The LS-HV is a Class B pulsating vacuum autoclave with vacuum drying.

Its triple pulsating vacuum system is designed to remove air from the chamber and compatible loads before steam sterilisation, while the vacuum drying system assists with removing residual moisture after sterilisation.

Please select the required LS-35HV, LS-50HV, LS-75HV or LS-100HV capacity when ordering.
