BIOBASE BKM-K Class B Benchtop Steam Autoclave – 18L & 23L
BIOBASE BKM-K Class B Benchtop Steam Autoclave – 18L & 23L
Including GST, Shipping not included
Request a shipping quote
Couldn't load pickup availability

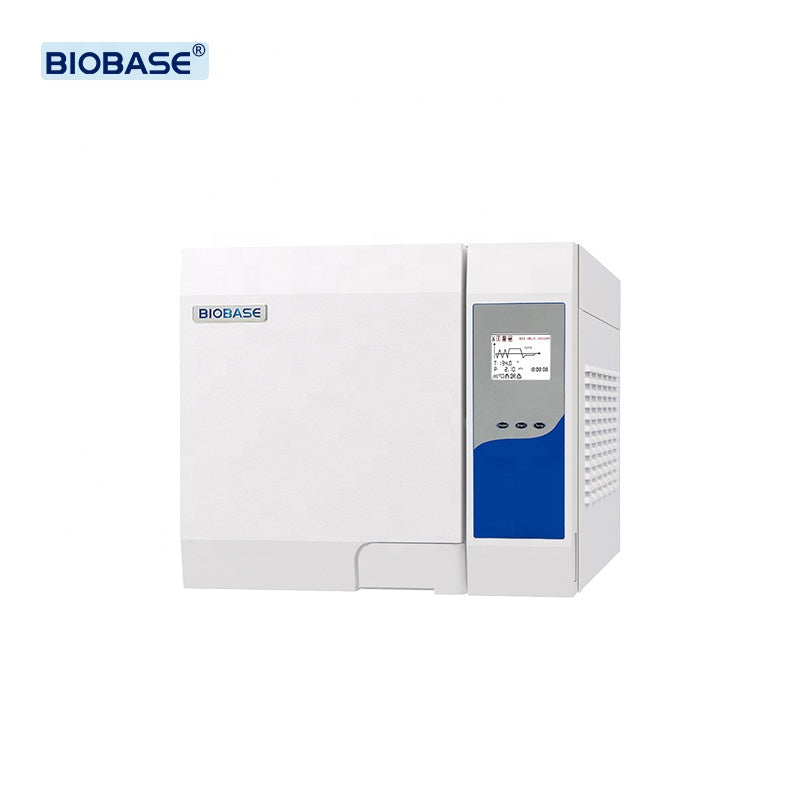

The BIOBASE BKM-K Class B Benchtop Steam Autoclave is a compact professional steam steriliser available in 18L and 23L capacities.
Designed for laboratories, universities, veterinary facilities, dental practices and other professional environments, the BKM-K Series uses repeated vacuum evacuation and saturated steam cycles to provide effective Class B sterilisation for compatible wrapped, unwrapped, hollow and porous loads.
A 3.5-inch LCD display provides real-time operating information including chamber pressure, temperature, cycle time and alarm information.
The autoclave also features separate clean and waste water tanks, a high-efficiency vacuum pump, a 0.22 μm air filter and USB cycle data recording.
Features
- Class B steam sterilisation
- Available in 18L and 23L capacities
- High-efficiency vacuum pump
- Multiple vacuum evacuation cycles for effective air removal

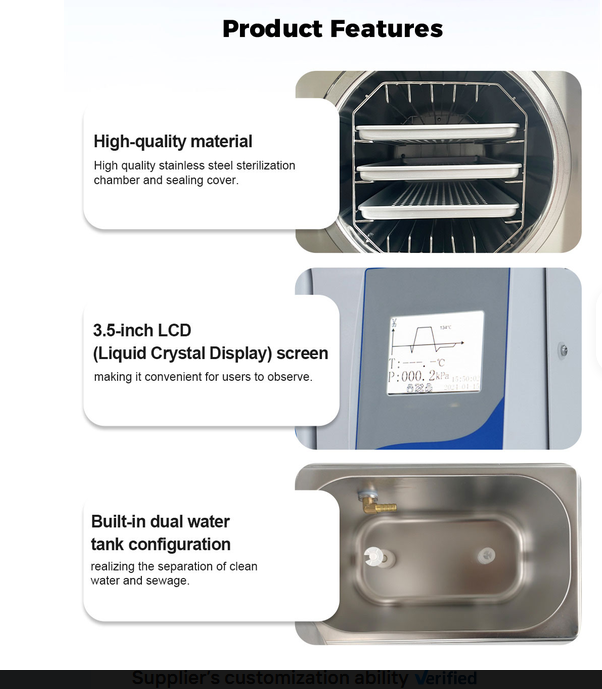

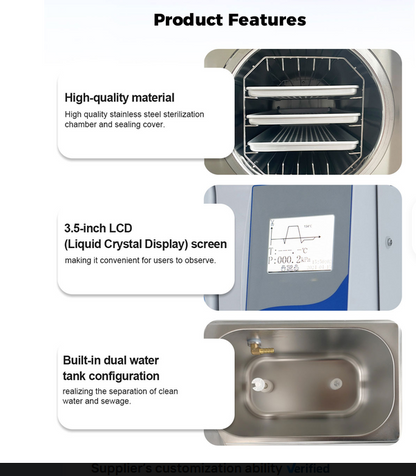

- 3.5-inch LCD display
- Real-time operating curve display
- Chamber pressure, temperature and time monitoring
- S30408 stainless steel sterilisation chamber
- Electrolytically polished chamber surface
- Silicone heating film for even chamber heating
- Separate clean and waste water tanks
- 3.5L water tank capacity
- No external water supply required
- 0.22 μm high-efficiency air filter
- USB cycle data recording
- Automatic operating programs
- B&D test program
- HELIX test program
- Vacuum test program
- Sterilisation temperatures of 121°C and 134°C
- Adjustable sterilisation time up to 60 minutes
- Adjustable drying time up to 20 minutes
- Three-level internal sterilisation rack
- Three sterilisation trays
- Manual door
- Optional built-in thermal printer
Sterilisation Programs
The BKM-K Series includes programs for a range of compatible sterilisation loads, including:
- Exposed solid instruments – 121°C / 134°C
- Packaged instruments – 121°C / 134°C
- Fabric loads – 121°C / 134°C
- Enhanced sterilisation – 134°C
- B&D test
- HELIX test
- Vacuum test
The appropriate program should be selected according to the item being sterilised.
Available Models
| Model | Capacity | Chamber Size |
|---|---|---|
| BKM-K18BE | 18 Litres | Ø250 × 350 mm |
| BKM-K23BE | 23 Litres | Ø250 × 450 mm |
Technical Specifications
| Specification | BKM-K18BE | BKM-K23BE |
| Capacity | 18 Litres | 23 Litres |
| Sterilisation Class | Class B | Class B |
| Door | Manual | Manual |
| Display | 3.5-inch LCD | 3.5-inch LCD |
| Maximum Design Pressure | 0.30 MPa | 0.30 MPa |
| Working Pressure | 0.23 MPa | 0.23 MPa |
| Maximum Design Temperature | 150°C | 150°C |
| Working Temperatures | 121°C / 134°C | 121°C / 134°C |
| Temperature Precision | 0.1°C | 0.1°C |
| Sterilisation Time | 0–60 Minutes | 0–60 Minutes |
| Drying Time | 0–20 Minutes | 0–20 Minutes |
| Water Tank Capacity | 3.5 Litres | 3.5 Litres |
| Vacuum System | High-Efficiency Vacuum Pump | High-Efficiency Vacuum Pump |
| Chamber Material | S30408 Stainless Steel | S30408 Stainless Steel |
| Chamber Size | Ø250 × 350 mm | Ø250 × 450 mm |
| Internal Rack | 1 Rack with 3 Trays | 1 Rack with 3 Trays |
| Power Consumption | 3.0 kW | 3.0 kW |
| Power Supply | AC220V ±10%, 50/60Hz | AC220V ±10%, 50/60Hz |
Ideal For
- Research laboratories
- Universities and educational laboratories
- Veterinary facilities
- Dental practices
- Medical and clinical laboratories
- Pharmaceutical laboratories
- Biotechnology laboratories
- Quality control laboratories
- General professional sterilisation applications
What's Included
- BIOBASE BKM-K Class B Benchtop Steam Autoclave
- Three aluminium sterilisation trays
- Sterilisation rack
- Tray clip
- USB port
- Power cable
- User documentation
Optional Accessories
- Built-in thermal printer
- Stainless steel sterilisation trays
Warranty & Shipping
12-Month Manufacturer's Warranty
Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.
Use only the water type specified by the manufacturer. Damage resulting from unsuitable or untreated water may not be covered under warranty.
Australia-Wide Shipping
Freight is quoted separately based on delivery location and site access requirements.
A freight quotation will be provided for your approval before the order is processed.
Please Note
The BKM-K Series is a Class B steam autoclave intended for compatible wrapped and unwrapped instruments, hollow items, porous loads and other suitable heat-resistant materials.
Always follow the manufacturer's operating instructions and applicable sterilisation procedures for the particular load being processed.
