JIBIMED TM-XD Class N Benchtop Steam Autoclave – 35L & 50L
JIBIMED TM-XD Class N Benchtop Steam Autoclave – 35L & 50L
Including GST, Shipping not included
Request a shipping quote
Couldn't load pickup availability

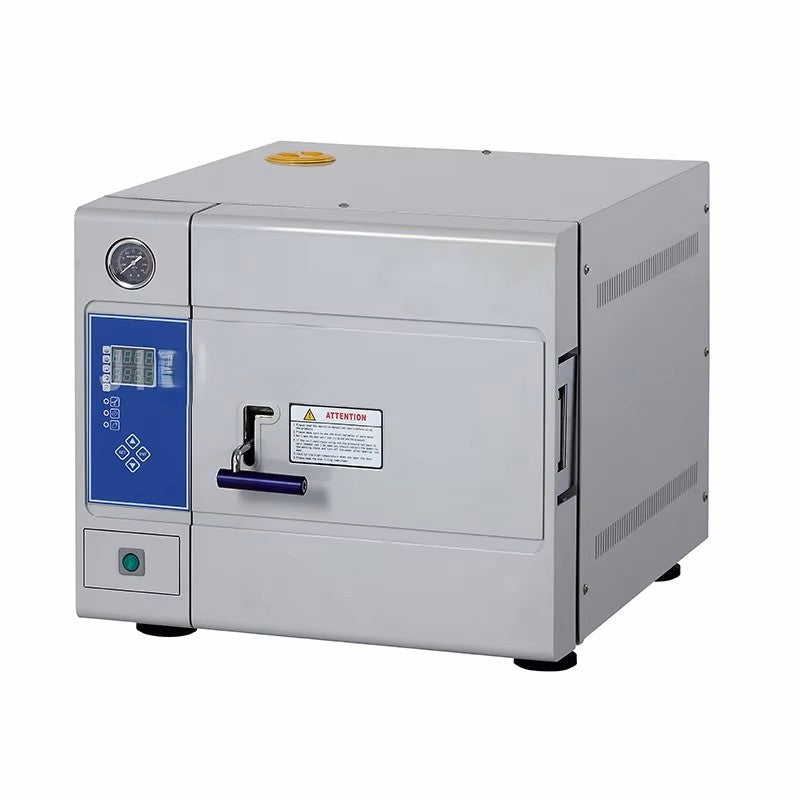

The JIBIMED TM-XD Class N Benchtop Steam Autoclave is a fully automatic steam steriliser available in 35L and 50L capacities.
Designed for laboratories, universities, research facilities and other professional environments, the TM-XD Series combines a large stainless steel sterilisation chamber with automatic water addition, heating, sterilisation, steam discharge and drying.
The front-loading design provides convenient access to the chamber, while digital controls allow sterilisation temperature and cycle time to be adjusted for compatible laboratory loads.
An internal steam-water circulation system reduces external steam discharge during operation, while automatic cold-air exhaust, low-water protection and door safety controls support reliable routine use.
Features
- Available in 35L and 50L capacities
- Class N steam sterilisation
- Fully automatic operation
- Automatic water addition
- Automatic heating
- Automatic sterilisation
- Automatic steam discharge
- Automatic drying
- Automatic cold-air exhaust
- Internal steam-water circulation system
- Digital operating display
- Touch-button controls
- Stainless steel sterilisation chamber

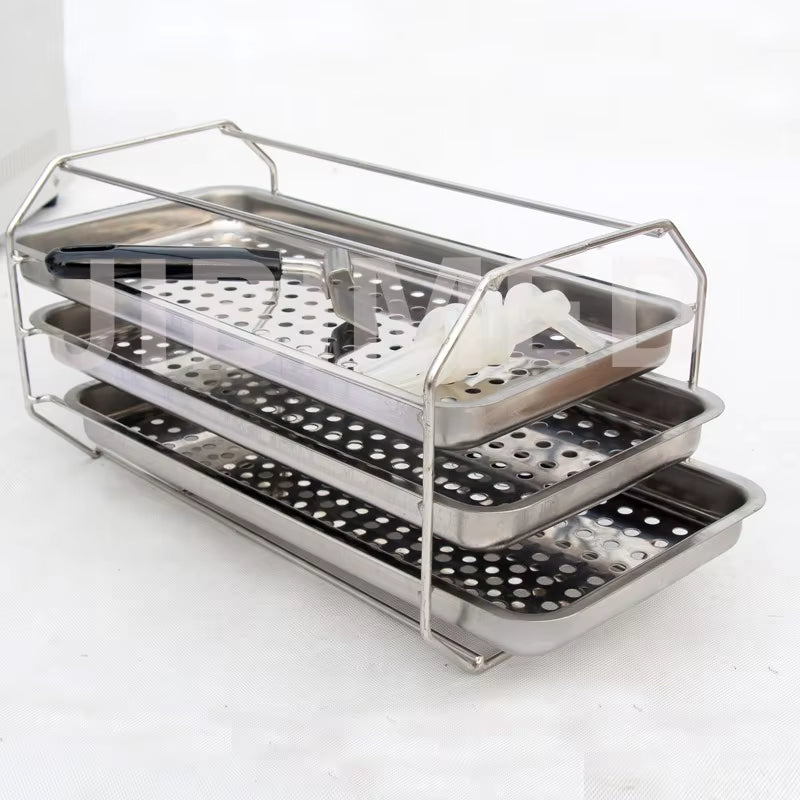

- Four stainless steel sterilisation trays
- Adjustable sterilisation temperature from 105°C to 134°C
- Adjustable sterilisation timer from 0 to 99 minutes
- Rapid sterilisation cycle capability
- Low-water protection
- Over-temperature protection
- Over-pressure protection
- Door safety locking system
- Automatic cycle completion with audible alert
- AC220V, 50Hz
Available Models
| Model | Capacity | Chamber Size |
|---|---|---|
| TM-XD35D | 35 Litres | Ø300 × 500 mm |
| TM-XD50D | 50 Litres | Ø340 × 550 mm |
Technical Specifications
| Specification | TM-XD35D | TM-XD50D |
|---|---|---|
| Capacity | 35 Litres | 50 Litres |
| Sterilisation Class | Class N | Class N |
| Chamber Size | Ø300 × 500 mm | Ø340 × 550 mm |
| Design Pressure | 0.30 MPa | 0.30 MPa |
| Maximum Working Pressure | 0.25 MPa | 0.25 MPa |
| Design Temperature | 150°C | 150°C |
| Maximum Working Temperature | 138°C | 138°C |
| Adjustable Temperature | 105°C–134°C | 105°C–134°C |
| Temperature Uniformity | ≤ ±1°C | ≤ ±1°C |
| Sterilisation Timer | 0–99 Minutes | 0–99 Minutes |
| Drying Function | Yes | Yes |
| Chamber Material | Stainless Steel | Stainless Steel |
| Sterilisation Trays | 4 Stainless Steel Trays | 4 Stainless Steel Trays |
| Power Consumption | 2.7 kW | 2.7 kW |
| Power Supply | AC220V, 50Hz | AC220V, 50Hz |
Suitable Applications
The TM-XD Series is suitable for sterilising compatible:
- Laboratory glassware
- Solid laboratory instruments
- Culture media
- Fabric dressings
- Heat-resistant laboratory materials
- Research and quality-control equipment
The appropriate sterilisation settings should always be selected according to the material being processed and the manufacturer's operating instructions.
What's Included
- JIBIMED TM-XD Class N Benchtop Steam Autoclave
- Four stainless steel sterilisation trays
- Tray rack
- Standard manufacturer-supplied accessories
- User documentation
Warranty & Shipping
12-Month Manufacturer's Warranty
Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.
Use only the water type specified by the manufacturer. Damage resulting from unsuitable or untreated water may not be covered under warranty.
Australia-Wide Shipping
Freight is quoted separately based on delivery location and site access requirements.
A freight quotation will be provided for your approval before the order is processed.
Please Note
The TM-XD Series is available in two capacities.
Please select the required TM-XD35D – 35 Litre or TM-XD50D – 50 Litre model when ordering.
Please Note
The TM-XD50D is a Class N steam autoclave designed for compatible steam-resistant laboratory loads.
Please ensure the sterilisation requirements of the load are suitable for a Class N steriliser before use.
