JIBIMED LS-HD Class N Vertical Pressure Steam Autoclave – 35L, 50L, 75L & 100L

JIBIMED LS-HD Class N Vertical Pressure Steam Autoclave – 35L, 50L, 75L & 100L

$2,495.00 AUD
$2,495.00 AUD
Including GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Including GST, Shipping not included

Size

Request a shipping quote

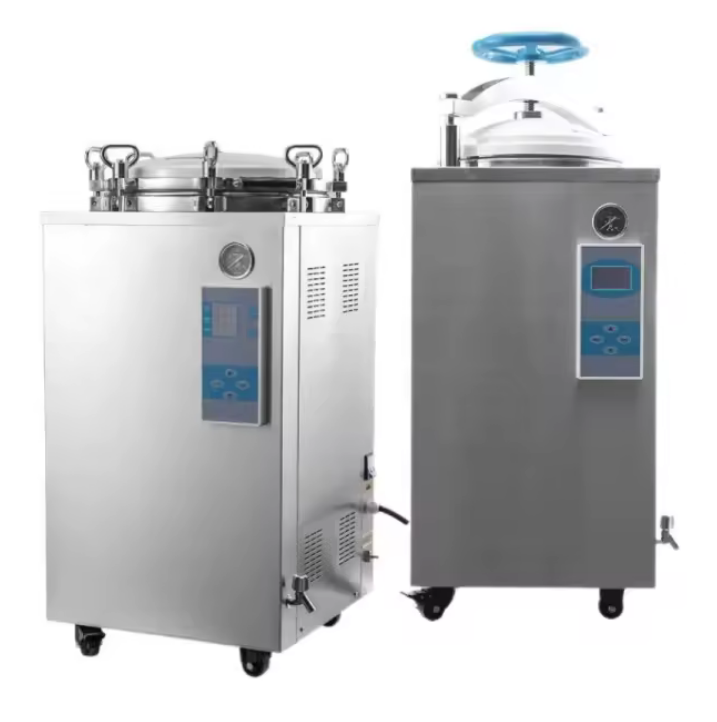

The JIBIMED LS-HD Series is a fully automatic vertical pressure steam autoclave available in 35L, 50L, 75L and 100L capacities.

Designed for laboratories, universities, research facilities, veterinary applications and other professional environments, the LS-HD Series provides automatic high-pressure steam sterilisation with convenient digital control.

The handwheel quick-opening door provides secure chamber access, while the LCD display and touch-button controls allow the sterilisation temperature and operating time to be configured for compatible loads.

Cold air is automatically discharged during operation, and steam is automatically released following sterilisation.

Features

  • Available in 35L, 50L, 75L and 100L capacities
  • Class N pressure steam sterilisation
  • Fully stainless steel construction
  • Handwheel quick-opening door
  • LCD operating display
  • Touch-button controls
  • Automatic cold-air discharge
  • Automatic steam discharge after sterilisation
  • Adjustable temperature from 105°C–134°C
  • Adjustable timer from 0–99 minutes or up to 99 hours 59 minutes
  • Working temperature of 134°C
  • Working pressure of 0.22 MPa
  • Maximum working pressure of 0.23 MPa
  • Temperature uniformity of ≤ ±1°C
  • Door safety locking system
  • Self-inflating door seal
  • Low-water protection
  • Over-temperature protection
  • Over-pressure protection
  • Automatic shutdown at cycle completion
  • Audible end-of-cycle alert
  • Two stainless steel sterilising baskets
  • Optional drying system
  • AC220V, 50Hz

Available Models

Model Capacity Chamber Size
LS-35HD 35 Litres Ø318 × 450 mm
LS-50HD 50 Litres Ø340 × 550 mm
LS-75HD 75 Litres Ø400 × 600 mm
LS-100HD 100 Litres Ø440 × 650 mm

Technical Specifications

Specification LS-35HD LS-50HD LS-75HD LS-100HD
Capacity 35 Litres 50 Litres 75 Litres 100 Litres
Sterilisation Class Class N Class N Class N Class N
Working Pressure 0.22 MPa 0.22 MPa 0.22 MPa 0.22 MPa
Maximum Working Pressure 0.23 MPa 0.23 MPa 0.23 MPa 0.23 MPa
Working Temperature 134°C 134°C 134°C 134°C
Adjustable Temperature 105°C–134°C 105°C–134°C 105°C–134°C 105°C–134°C
Temperature Uniformity ≤ ±1°C ≤ ±1°C ≤ ±1°C ≤ ±1°C
Timer 0–99 min / 0–99 hr 59 min 0–99 min / 0–99 hr 59 min 0–99 min / 0–99 hr 59 min 0–99 min / 0–99 hr 59 min
Display LCD LCD LCD LCD
Sterilising Baskets 2 2 2 2
Power 2.5 kW 3.0 kW 4.5 kW 4.5 kW
Power Supply AC220V, 50Hz AC220V, 50Hz AC220V, 50Hz AC220V, 50Hz

Suitable Applications

The LS-HD Series is suitable for compatible:

  • Laboratory glassware
  • Unwrapped solid instruments
  • Culture media
  • Laboratory containers
  • Dressings
  • Heat-resistant laboratory materials
  • Research and quality-control applications

Always select sterilisation settings appropriate for the material being processed.

What's Included

  • JIBIMED LS-HD Vertical Pressure Steam Autoclave
  • Two stainless steel sterilising baskets
  • Power cable
  • User documentation

Optional

  • Drying system available on request

Warranty & Shipping

12-Month Manufacturer's Warranty

Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.

Use only distilled or demineralised water. Damage caused by unsuitable or untreated water may not be covered under warranty.

Australia-Wide Shipping

Freight is quoted separately based on delivery location and site access requirements.

A freight quotation will be provided for your approval before the order is processed.

Please Note

The LS-HD Series is a Class N vertical pressure steam steriliser.

The drying system is optional and should not be assumed to be included unless specifically ordered.

Please select the required LS-35HD – 35 Litre, LS-50HD – 50 Litre, LS-75HD – 75 Litre or LS-100HD – 100 Litre model when ordering.
