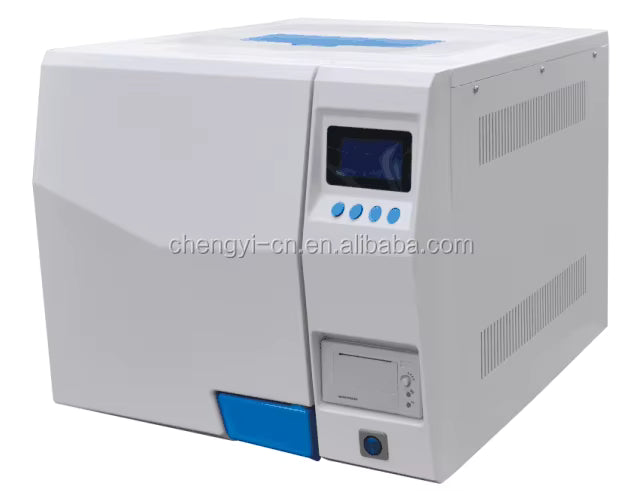

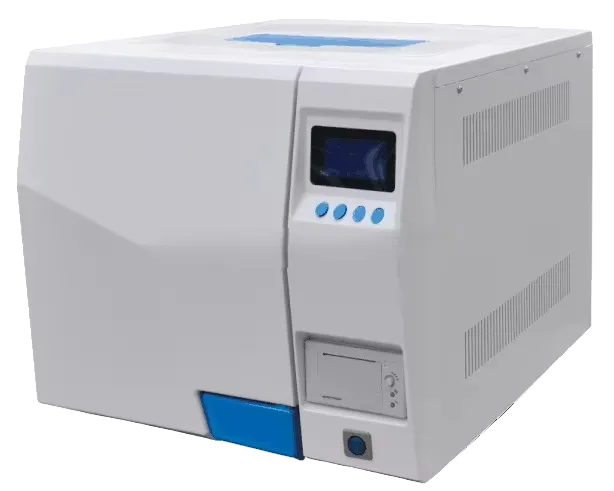

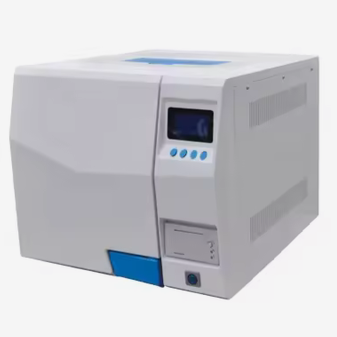

The JIBIMED TM-XD24DV is a 24-litre Class B benchtop pulse vacuum steam autoclave designed for professional sterilisation applications in laboratories, universities, research facilities, dental clinics and other compatible environments.

The TM-XD24DV uses three pulse-vacuum cycles to remove air from the sterilisation chamber and compatible loads before saturated steam sterilisation.

This vacuum-assisted process helps improve steam penetration into packaged and unpackaged instruments, solid items, hollow instruments and other suitable heat-resistant loads.

Following sterilisation, the automatic vacuum drying system assists with removing residual moisture from processed loads.

The TM-XD24DV features fully automatic computer-controlled operation, LCD monitoring, an independent steam generator, Bowie & Dick testing, vacuum testing and a built-in mini thermal printer for recording sterilisation cycle information.

Features

• 24L chamber capacity

• Class B pulse vacuum steam sterilisation

• Three vacuum cycles

• Automatic vacuum drying

• Vacuum level up to approximately -0.8 bar

• Suitable for compatible packaged instruments

• Suitable for compatible unpackaged instruments

• Suitable for compatible solid instruments

• Suitable for compatible hollow instruments

• Fully automatic computer-controlled operation

• LCD operating display

• Touch-button controls

• Bowie & Dick test function

• Vacuum test function

• Fast independent steam generator

• Built-in mini thermal printer

• Open water tank design

• Separate clean-water and waste-water system

• Safety valve

• Door safety locking system

• Pressure locking system

• Pressure and temperature overload protection

• Automatic alarm system

• Working temperature of 134°C

• Adjustable temperature range of 105°C–134°C

• Adjustable sterilisation timer from 0–99 minutes

• AC220V, 50Hz

• 2.0 kW power consumption

Technical Specifications

Suitable Applications

The TM-XD24DV is suitable for compatible:

• Packaged instruments

• Unpackaged instruments

• Solid instruments

• Hollow instruments

• Laboratory glassware

• Culture media

• Biological dressings

• Heat-resistant laboratory materials

• Research and quality-control applications

Always follow the manufacturer's operating instructions and select the appropriate sterilisation cycle for the material being processed.

What's Included

• JIBIMED TM-XD24DV 24L Pulse Vacuum Steam Autoclave

• Built-in mini thermal printer

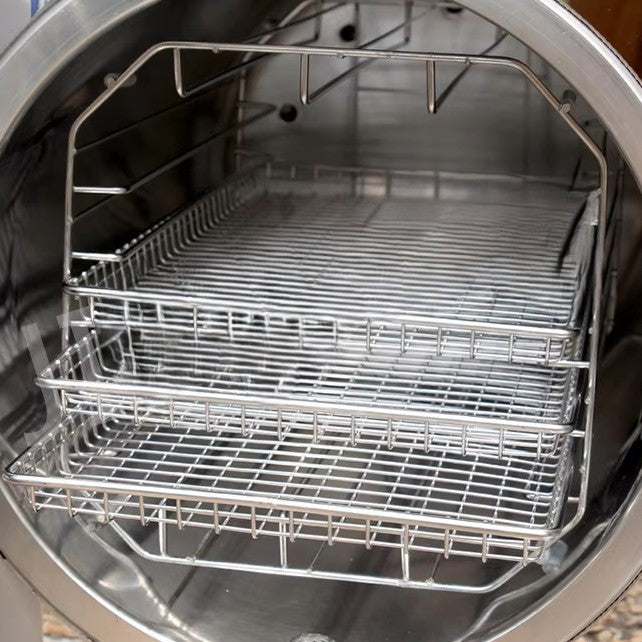

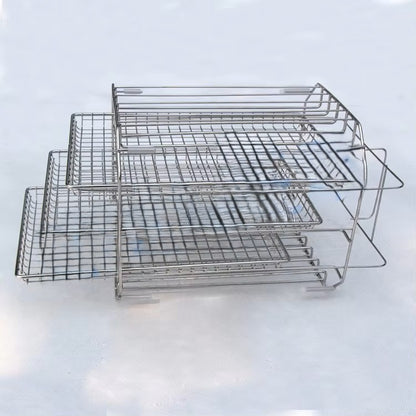

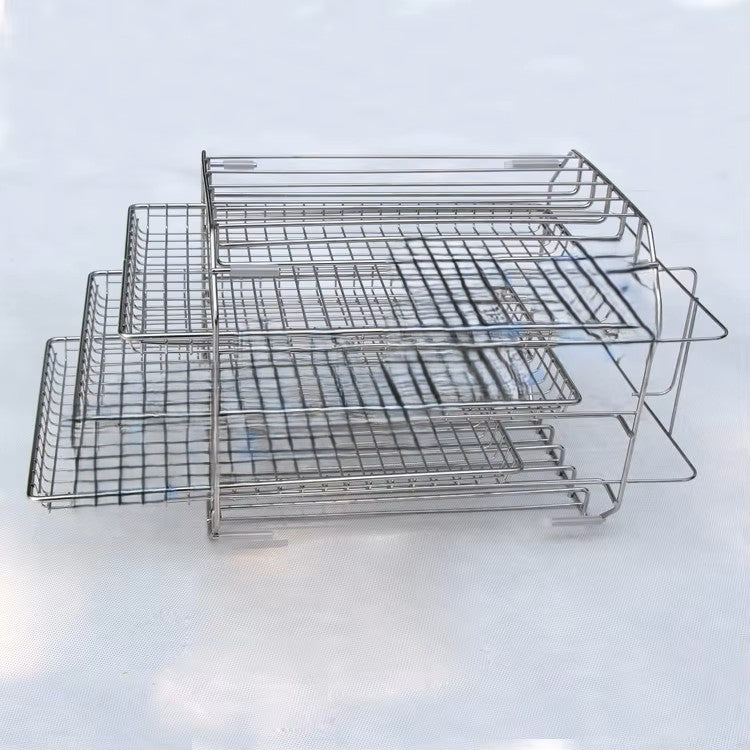

• Sterilisation trays and rack

• Power cable

• User documentation

Warranty & Shipping

12-Month Manufacturer's Warranty

Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.

Use only distilled or demineralised water. Damage caused by unsuitable or untreated water may not be covered under warranty.

Australia-Wide Shipping

Freight is quoted separately based on delivery location and site access requirements.

A freight quotation will be provided for your approval before the order is processed.

Please Note

The TM-XD24DV is a Class B pulse vacuum autoclave with automatic vacuum drying.

Its three-cycle vacuum system is designed to improve air removal and steam penetration for compatible packaged, unpackaged, solid and hollow loads.
