JIBIMED TM-DV Pulse Vacuum Steam Autoclave – 35L & 50L
JIBIMED TM-DV Pulse Vacuum Steam Autoclave – 35L & 50L
Including GST, Shipping not included
Request a shipping quote
Couldn't load pickup availability

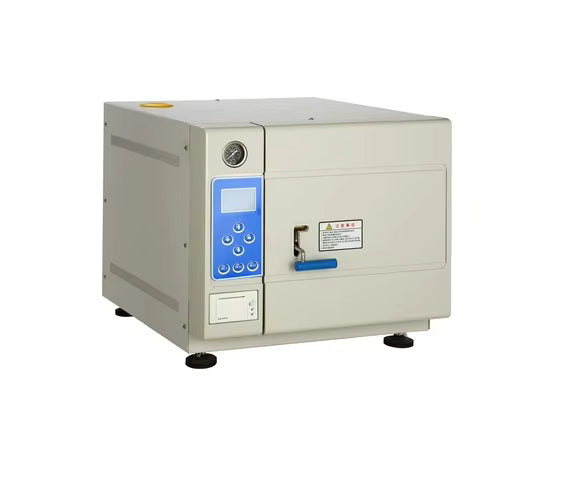

The JIBIMED TM-DV Pulse Vacuum Steam Autoclave is a professional steam steriliser available in 35L and 50L capacities.
Designed for laboratories and other professional sterilisation environments, the TM-DV Series uses repeated pulse-vacuum cycles to remove air from compatible loads before saturated-steam sterilisation.
The system is suitable for compatible wrapped and unwrapped items, hollow equipment and laboratory instruments. Following sterilisation, vacuum exhaust and jacket-assisted drying help remove residual moisture from the load.
Operation is automatically controlled, with adjustable sterilisation and drying times, built-in cycle monitoring and a thermal printer for recording cycle information.
Features
- Available in 35L and 50L capacities
- Pulse-vacuum steam sterilisation
- Three or more pulse-vacuum exhaust cycles
- Suitable for compatible wrapped and unwrapped loads
- Suitable for compatible hollow equipment
- Automatic sterilisation control
- Vacuum-assisted drying
- Jacket-assisted drying
- Adjustable sterilisation temperature from 55°C to 134°C
- Adjustable sterilisation timer from 1 to 99 minutes
- Adjustable drying timer from 1 to 99 minutes
- Vacuum limit of approximately -0.08 MPa
- Built-in thermal printer
- Bowie & Dick steam penetration test
- Automatic fault self-testing
- Door safety locking system
- Over-pressure protection
- Low-water protection
- Over-current protection
- Door security alarm
- AC220V, 50Hz
Available Models
| Model | Capacity | Chamber Size |
|---|---|---|
| TM-35DV | 35 Litres | Ø300 × 500 mm |
| TM-50DV | 50 Litres | Ø340 × 550 mm |
Technical Specifications
| Specification | TM-35DV | TM-50DV |
|---|---|---|
| Capacity | 35 Litres | 50 Litres |
| Sterilisation System | Pulse Vacuum Steam | Pulse Vacuum Steam |
| Maximum Working Temperature | 134°C ±1°C | 134°C ±1°C |
| Maximum Working Pressure | 0.22 MPa | 0.22 MPa |
| Adjustable Temperature | 55°C–134°C | 55°C–134°C |
| Sterilisation Timer | 1–99 Minutes | 1–99 Minutes |
| Drying Timer | 1–99 Minutes | 1–99 Minutes |
| Vacuum Limit | -0.08 MPa | -0.08 MPa |
| Temperature Uniformity | ≤2°C | ≤2°C |
| Pulse Vacuum Cycles | At Least 3 | At Least 3 |
| Drying System | Vacuum Exhaust + Jacket Drying | Vacuum Exhaust + Jacket Drying |
| Built-In Printer | Yes | Yes |
| Bowie & Dick Test | Yes | Yes |
| Power Supply | AC220V, 50Hz | AC220V, 50Hz |
Suitable Applications
The TM-DV Series is suitable for compatible:
- Wrapped instruments
- Unwrapped instruments
- Hollow equipment
- Laboratory instruments
- Laboratory glassware
- Heat-resistant laboratory materials
- Research and quality-control applications
The selected sterilisation cycle and operating conditions should always be appropriate for the load being processed and used in accordance with the manufacturer's operating instructions.
TM-35DV Standard Equipment
JIBIMED specifies the TM-35DV with:

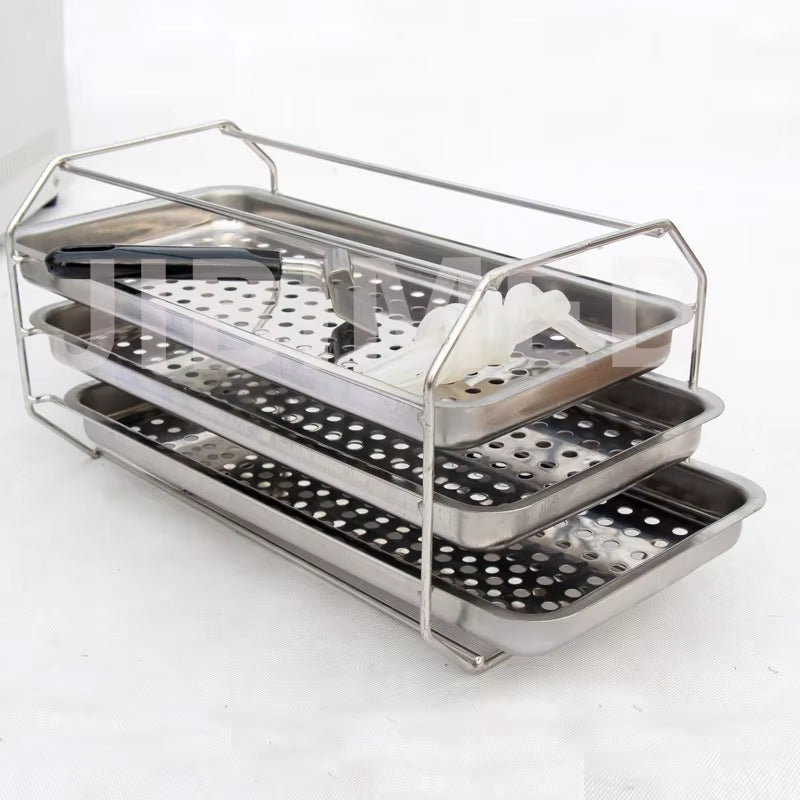

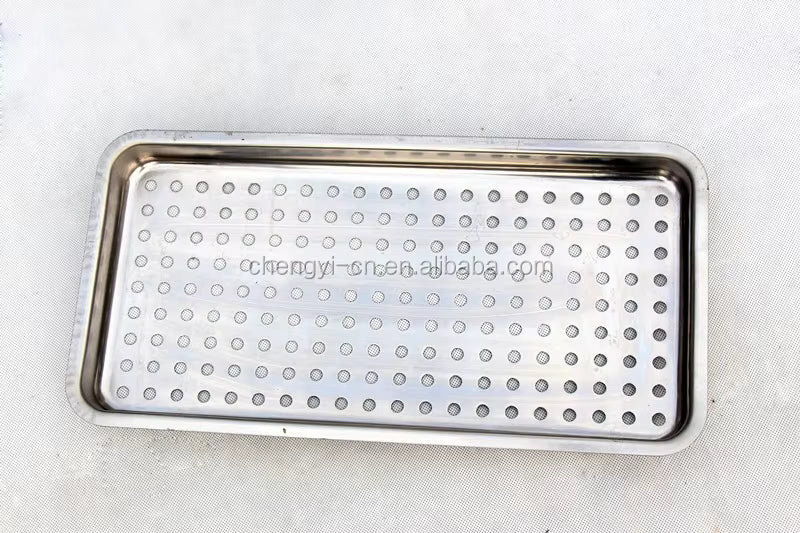

- Four stainless steel trays
- Two stainless steel containers
- Disposable Bowie & Dick test kits
- Physico-chemical sterilisation indicator
- Steam sterilisation adhesive indicators
- Pressure-steam sterilisation comprehensive test package
Warranty & Shipping
12-Month Manufacturer's Warranty
Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.
Use only the water type specified by the manufacturer. Damage resulting from unsuitable or untreated water may not be covered under warranty.
Australia-Wide Shipping
Freight is quoted separately based on delivery location and site access requirements.
A freight quotation will be provided for your approval before the order is processed.
Please Note
The TM-DV Series uses repeated pulse-vacuum air removal followed by saturated-steam sterilisation and vacuum-assisted drying.
Please select the required TM-35DV – 35 Litre or TM-50DV – 50 Litre model when ordering.
