JIBIMED YX-HDD Class N Portable Pressure Steam Steriliser – 18L & 24L

$1,050.00 AUD

Including GST

Sale Sold out

Taxes included. Shipping calculated at checkout.

Including GST, Shipping not included

Model YX-18HDD – 18 Litre YX-24HDD – 24 Litre

Request a shipping quote

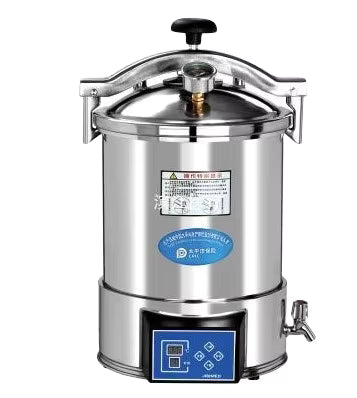

The JIBIMED YX-HDD Series is a compact portable pressure steam steriliser available in 18L and 24L capacities.

Designed for laboratories, universities, research facilities, veterinary applications and other professional environments, the YX-HDD Series provides straightforward steam sterilisation in a durable stainless steel design.

The handwheel quick-opening lid provides secure chamber access, while the digital operating display and touch-button controls provide convenient operation.

Both models operate at a working temperature of 126°C with an adjustable temperature range of 105°C–126°C.

Features

Available in 18L and 24L capacities
Class N pressure steam sterilisation
Fully stainless steel construction

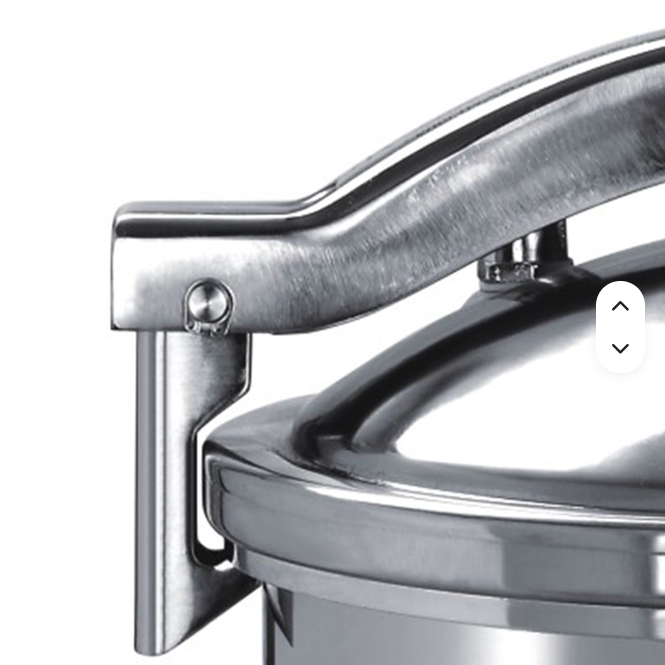

Handwheel quick-opening lid
Digital operating display
Touch-button controls
Electric heating
Working temperature of 126°C
Adjustable temperature range of 105°C–126°C
Working pressure of 0.14–0.16 MPa
Maximum safety pressure of 0.165 MPa
Temperature uniformity of ≤ ±1°C
2.0 kW power consumption
AC220V, 50Hz
Compact portable design

Available Models

Model	Capacity	Chamber Size
YX-18HDD	18 Litres	Ø280 × 260 mm
YX-24HDD	24 Litres	Ø280 × 390 mm

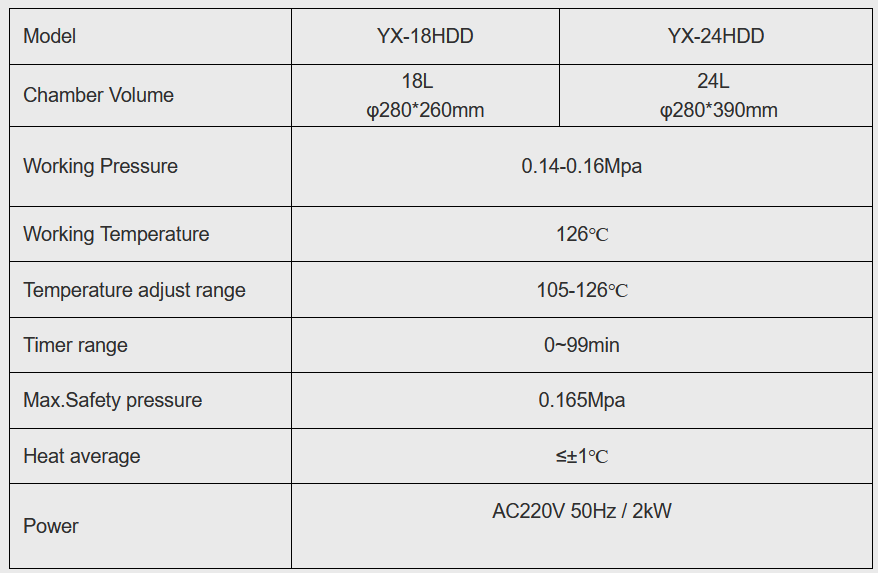

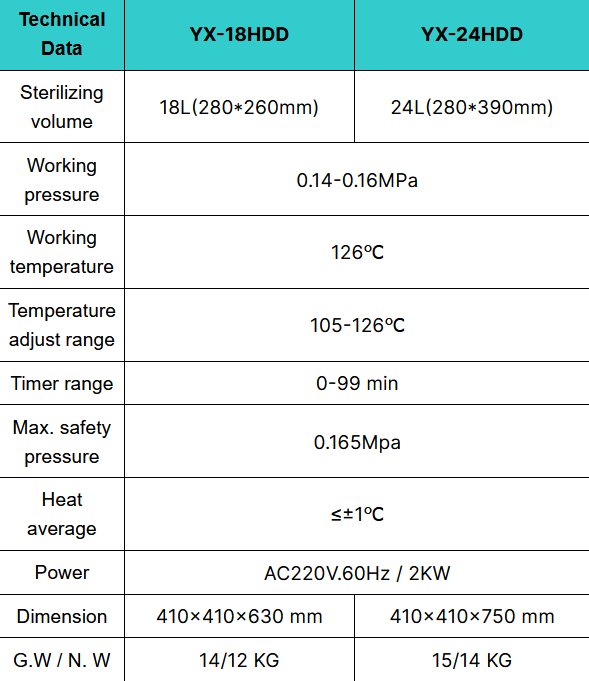

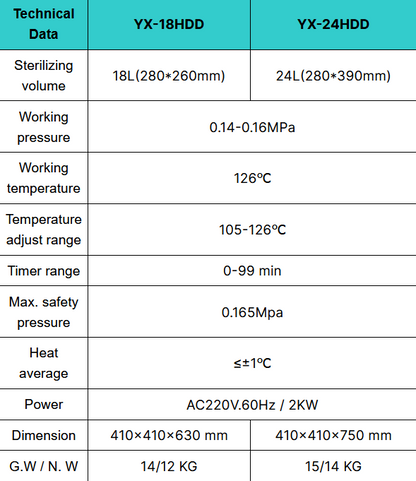

Technical Specifications

Specification	YX-18HDD	YX-24HDD
Capacity	18 Litres	24 Litres
Sterilisation Class	Class N	Class N
Chamber Size	Ø280 × 260 mm	Ø280 × 390 mm
Working Pressure	0.14–0.16 MPa	0.14–0.16 MPa
Working Temperature	126°C	126°C
Adjustable Temperature	105°C–126°C	105°C–126°C
Maximum Safety Pressure	0.165 MPa	0.165 MPa
Temperature Uniformity	≤ ±1°C	≤ ±1°C
Heating	Electric	Electric
Power Consumption	2.0 kW	2.0 kW
Power Supply	AC220V, 50Hz	AC220V, 50Hz

Suitable Applications

The YX-HDD Series is suitable for compatible:

Laboratory instruments
Laboratory glassware
Culture media
Unwrapped solid items
Heat-resistant laboratory materials
Research and quality-control applications

Always ensure the sterilisation requirements of the load are compatible with the operating temperature and sterilisation method of the selected unit.

Warranty & Shipping

12-Month Manufacturer's Warranty

Australian customer support is provided for autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to assist with installation, operation and troubleshooting.

Use only distilled or demineralised water. Damage caused by unsuitable or untreated water may not be covered under warranty.

Australia-Wide Shipping

Freight is quoted separately based on delivery location and site access requirements.

A freight quotation will be provided for your approval before the order is processed.
