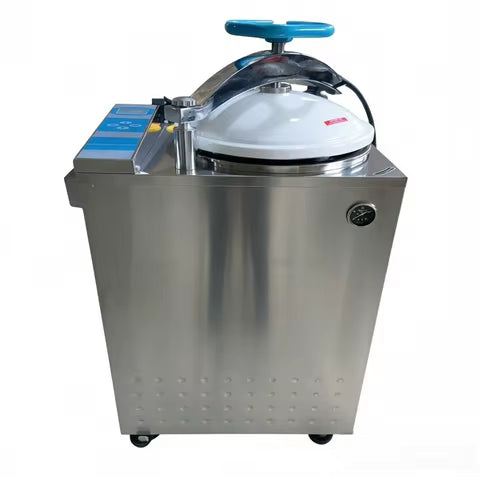

JIBIMED LS-HG Class N Vertical Steam Autoclave | 35L–100L

JIBIMED LS-HG Class N Vertical Steam Autoclave | 35L–100L

$4,250.00 AUD
$4,250.00 AUD
Including GST
Sale Sold out
Taxes included. Shipping calculated at checkout.

Including GST, Shipping not included

Model

Request a shipping quote

The LS-HG Class N Vertical Steam Autoclave is a fully automatic high-pressure steam steriliser available in 35L, 50L, 75L and 100L capacities.

Designed for laboratory and research environments requiring dependable high-capacity steam sterilisation, the LS-HG series features automatic cycle control, digital operation, automatic cool-air discharge, automatic water addition and an internal steam circulation system.

The range provides an adjustable temperature setting of up to 134°C and a programmable sterilisation timer from 1–99 minutes.

Features

  • Class N pressure steam steriliser

  • Fully automatic operation

  • Digital display

  • Automatic cool-air discharge

  • Automatic water addition

  • Internal steam circulation system

  • Working temperature up to 134°C

  • Adjustable temperature range: 0°C–134°C

  • Adjustable sterilisation timer: 1–99 minutes

  • Working pressure: 0.22 MPa

  • Maximum working pressure: 0.23 MPa

  • Temperature uniformity: ≤ ±1°C

  • Available in 35L, 50L, 75L and 100L capacities

  • AC 220V, 50Hz power supply

Available Models

Model Capacity Chamber Size Power
LS-35HG 35 Litres Ø310 × 450 mm 2.5 kW
LS-50HG 50 Litres Ø340 × 550 mm 3.0 kW
LS-75HG 75 Litres Ø400 × 600 mm 4.5 kW
LS-100HG 100 Litres Ø440 × 650 mm 4.5 kW

Technical Specifications

Specification Details
Steriliser Classification Class N
Sterilisation Method High-pressure steam
Working Pressure 0.22 MPa
Maximum Working Pressure 0.23 MPa
Working Temperature 134°C
Adjustable Temperature Range 0°C–134°C
Temperature Uniformity ≤ ±1°C
Sterilisation Timer 1–99 Minutes
Control Fully Automatic
Display Digital
Automatic Cool-Air Discharge Yes
Automatic Water Addition Yes
Internal Steam Circulation Yes
Power Supply AC 220V, 50Hz

Ideal For

  • Research laboratories

  • Universities and educational laboratories

  • Quality control laboratories

  • Laboratory preparation areas

  • Industrial laboratories

  • General laboratory steam sterilisation

Warranty & Shipping

12-Month Manufacturer's Warranty

Australian customer support is provided for all autoclaves supplied by Australian Mycology Equipment. Technical assistance is available via phone, email and video support to help with installation, operation and troubleshooting.

Use only distilled or demineralised water. Damage caused by tap water, bore water, rainwater or other untreated water is not covered under warranty.

Australia-Wide Shipping

Australia-wide shipping is available for this product.

Freight costs vary depending on the delivery location and site access requirements. A freight quotation will be provided for your approval before your order is processed.
